HAProxy is an extremely powerful free and open-source load balancing solution. With it, you can insure high availability within your datacenter. Highly available systems are better for business continuity and better for security, as they can be patched with updates without taking the service down.
A common pattern in the design of highly available systems is to use a pair of load balancers in front of all of your other services. Today we’re going to explore HAProxy 2 in combination with Keepalived, a software package that allows two servers to share a single virtual IP by way of gratuitous ARP. Due to this, Keepalived requires your servers to be layer 2 adjacent. If an organization needs even more of a guarantee of high availability than this provides, it is time to evaluate georedundant options, which is beyond the scope of this article. (Though there do exist solutions that extend your L2 network between datacenters, for example via MPLS or SDWAN).
After we have our set of load balancers, we will look at configuring HAProxy with 3 member servers in a single pool. The assumption is that each of these servers is stateless. Session state is stored in a database (which should also be highly available, such as a MySQL/MariaDB Galera cluster). In this configuration, we can lose either load balancer, and the requests will continue to be proxied to the backing service. We can lose any two of the cluster servers and the remaining server will seamlessly continue to serve requests, as long as it can handle the load. HAProxy provides for different levels of guarantee that clients will not be interrupted when taking down a node. For most organizations, it is acceptable for clients to occasionally have to refresh the page when they’re unlucky enough to be hitting a node that has been taken down. If downtime is under a second, most users will not notice the disruption. For organizations dealing for which this is not enough of a guarantee, HAProxy 2.0 has been released with some bleeding-edge features which mitigate this. Layer 7 retries allow HAProxy to send failed requests to another node. This requires the backing application to support this behavior, as some applications are not smart enough to correctly process a POST request they are not expecting.
- Setting up KeepAliveD on machines HAProxy1 and HAProxy2
- Testing Failover with KeepAliveD
- Installing HAProxy
- Configuring HAProxy
- Testing HAProxy
- Adding SSL/TLS to the frontend configuration
- Configuring Layer 7 retries
Setting up KeepAliveD on machines HAProxy1 and HAProxy2
First, let’s setup keepalived between the two nodes, HAProxy1 and HAProxy2. This article assumes Ubuntu Server 18.04 LTS is being used, but the concepts remain the same for other distributions and the syntax remains similar.
sudo apt-get install linux-headers-$(uname -r)
sudo apt-get install keepalived
Once installed, create the file /etc/keepalived/keepalived.conf . Populate it with the following:
! Barebones conf File for keepalived
global_defs {
notification_email {
administrator@example.com
}
notification_email_from HAProxy1@example.com
smtp_server mymailserver.example.com
smtp_connect_timeout 60
}
vrrp_instance VI_1 {
state MASTER
interface eth0
virtual_router_id 101
priority 101
advert_int 1
authentication {
auth_type PASS
auth_pass 12345678
}
virtual_ipaddress {
192.168.3.135
}
}
For the second load balancer node, follow the same steps but we’ll change out the notification from email to reference the name of the second node, HAProxy2. On the second node, dial the priority down to 50. This insures the nodes can make a decision as to who is the master.
Testing Failover with KeepAliveD
Start the keepalived service on both nodes by issuing:

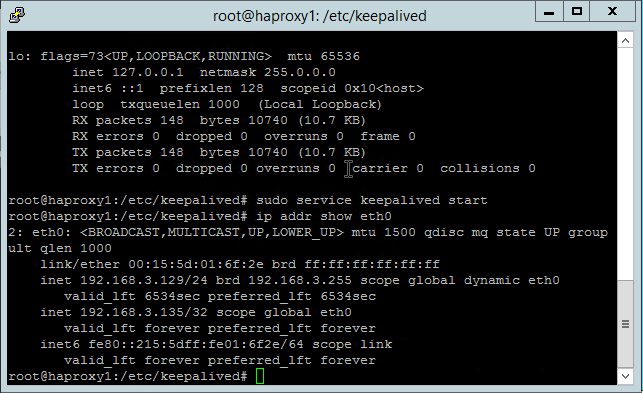

sudo service keepalived startNotice how HAProxy1 has our virtual IP assigned as an additional interface on ETH0...

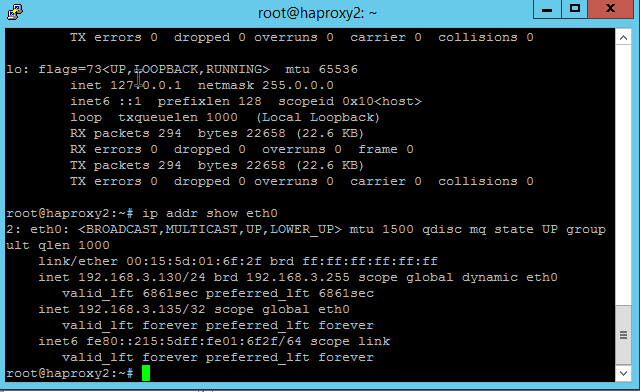

Notice that HAProxy2 does not...

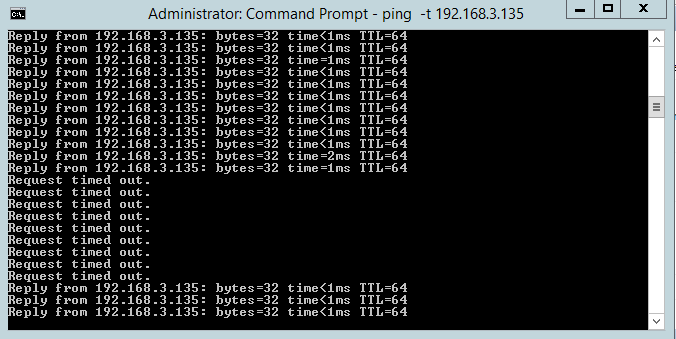

To verify failover occurs as expected, set up a continuous ping against the virtual IP and stop the keepalived service on HAProxy1.
We only lost a handful of ICMP requests before HAProxy2 started handling requests.

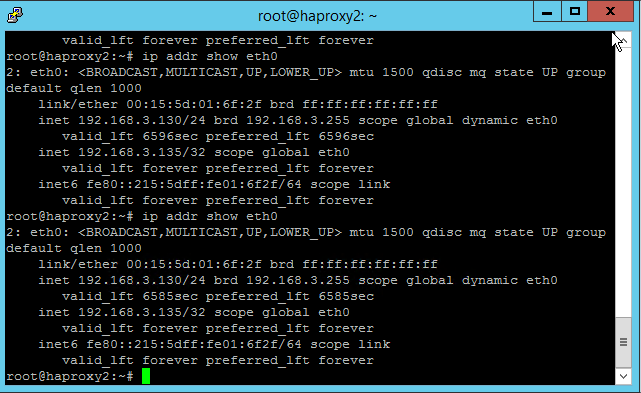

With the command:
ip addr show eth0we now see that HAProxy2 has control of the virtual address 192.168.3.135.
This virtual address is what we will bind HAProxy to on both machines.
Installing HAProxy
Install HAProxy on each node by issuing:
Apt-get install haproxyIn order to allow HAProxy to bind to an IP Address that isn’t necessarily going to always be present on the system, we need to set a special kernel option.

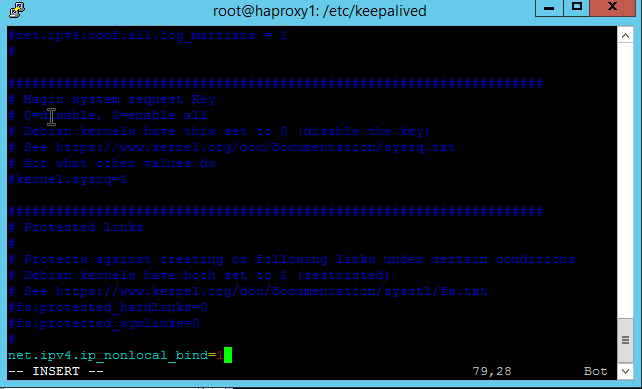

Edit /etc/sysctl.conf to set the property:
Net.ipv4.ip_nonlocal_bind=1
Add this line to the end of the file.
Save the file and issue
sysctl -pto allow the currently running kernel to reload its options. Make sure to run through this on both HAProxy nodes.
Configuring HAProxy
Next, edit /etc/haproxy/haproxy.cfg on both nodes to contain:
global
log /dev/log local0
log /dev/log local1 notice
chroot /var/lib/haproxy
stats socket /run/haproxy/admin.sock mode 660 level admin expose-fd listeners
stats timeout 30s
user haproxy
group haproxy
daemon
# Default SSL material locations
ca-base /etc/ssl/certs
crt-base /etc/ssl/private
# Default ciphers to use on SSL-enabled listening sockets.
# For more information, see ciphers(1SSL). This list is from:
# An alternative list with additional directives can be obtained from
# https://mozilla.github.io/server-side-tls/ssl-config-generator/?server=haproxy
ssl-default-bind-ciphers ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:RSA+AESGCM:RSA+AES:!aNULL:!MD5:!DSS
ssl-default-bind-options no-sslv3
defaults
log global
mode http
option httplog
option dontlognull
timeout connect 5000
timeout client 50000
timeout server 50000
errorfile 400 /etc/haproxy/errors/400.http
errorfile 403 /etc/haproxy/errors/403.http
errorfile 408 /etc/haproxy/errors/408.http
errorfile 500 /etc/haproxy/errors/500.http
errorfile 502 /etc/haproxy/errors/502.http
errorfile 503 /etc/haproxy/errors/503.http
errorfile 504 /etc/haproxy/errors/504.http
frontend www.mysite.com
bind 192.168.3.135:80
default_backend web_servers
backend web_servers
balance roundrobin
server server1 192.168.3.131:80 check
server server2 192.168.3.132:80 check
server server3 192.168.3.133:80 check
We can use the following command to validate the configuration file and fix any syntax errors that will prevent HAProxy from starting:
haproxy -c -V -f /etc/haproxy/haproxy.cfgTesting HAProxy

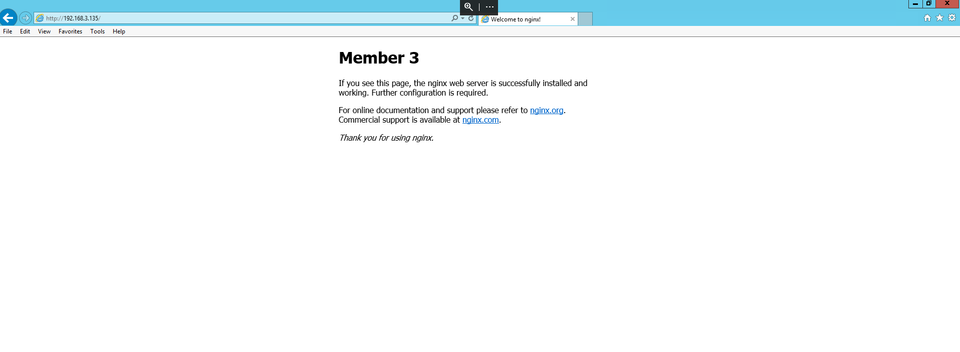

Each member server is simply running nginx on port 80, responding with its node name for demonstration purposes. The load balancer round robins connections, so each page refresh will result in a different member name being displayed.
Now, if we stop keepalived on the member that owns the IP, the IP will be picked up by the other HAProxy node and keep serving requests.
Adding SSL/TLS to the frontend configuration
Let’s say that we have a static website, and want the SEO boost from having SSL/TLS enabled but don’t send sensitive information to our servers. In this case, it’s a valid decision to enable SSL/TLS at the cluster level and terminate over plain HTTP to the backend servers. (If your site has the capability for users to login, you’ll want to configure HTTPS end to end – that is, between the load balancer and the backend servers too!).
Simply generate a certificate and edit the haproxy.cfg file on both nodes. For this demonstration we will generate a self-signed certificate, but if your service is internet facing (or even if it is not and you want to insure the utmost security of your service) you would generate a CSR and get a signed certificate from a certificate authority. We have many available SSL Certificates available here.

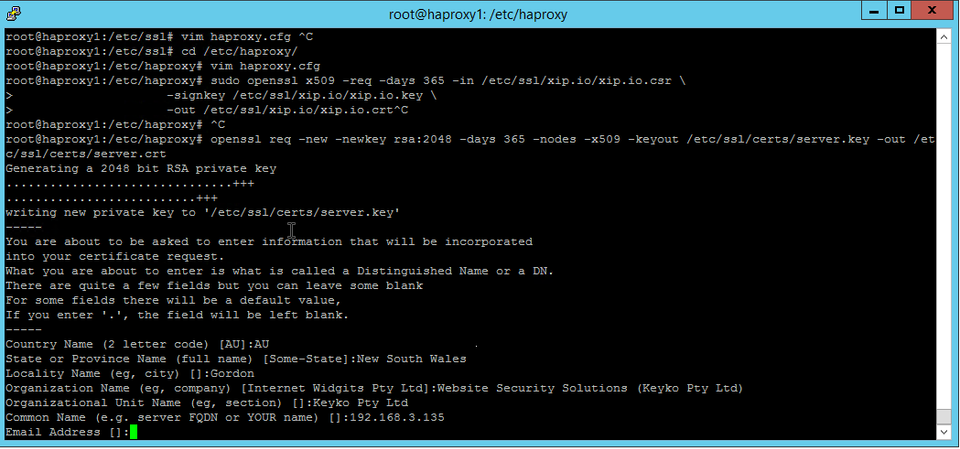

openssl req -new -newkey rsa:2048 -days 365 -nodes -x509 -keyout /etc/ssl/certs/server.key -out /etc/ssl/certs/server.crtThis Will generate a self-signed certificate suitable for HAProxy. You will be prompted for some information.
Turn the key material and certificate into a single PEM file with the following command:
sudo cat /etc/ssl/certs/server.crt /etc/ssl/certs/server.key | tee /etc/ssl/mycert.pemSince we only need this pem file, we will cleanup the temporary files we created and assign the correct permissions such that only the haproxy user on the system can access the pem file on the file system. This is a security best practice.
Rm /etc/ssl/certs/server.crt
Rm /etc/ssl/certs/server.key
Chown haproxy:haproxy /etc/ssl/mycert.pem
Chmod 700 /etc/ssl/mycert.pemNext, we need to edit our "frontend configuration" in haproxy.cfg to make use of the new certificate pair.
frontend www.example.com
bind *:80
bind 192.168.3.135:443 ssl crt /etc/ssl/mycert.pem
redirect scheme https if !{ ssl_fc }
mode http
default_backend web_serversNotice that we are binding on port 80 as well in order to redirect incoming HTTP connections to HTTPS.
Finally, restart HAProxy.

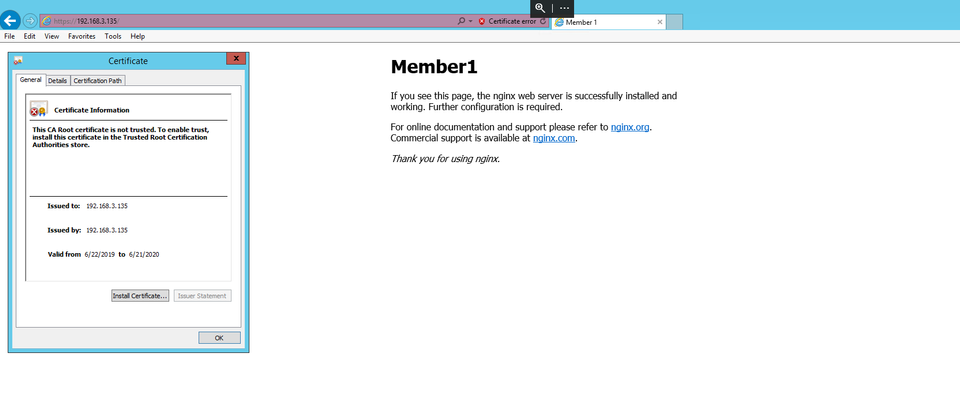

Note that if we were using a public ally signed certificate, the browser would trust the site.
Configuring Layer 7 retries
New in HAProxy 2 as of May 2019 are Layer 7 retries. Layer 7, also known as the application layer, references the layer of the OSI model at which the protocol HTTP operates. This allows the load balancer, when terminating a connection, to simply try against a different node before reporting a status to the client. This is an absolute game changer, because for the very first time taking a node out of the mix doesn’t involve announcing your intention to do so and waiting for it to be inactive.
This feature does require an application which handles this gracefully though. It is best suited for a shop that develops in-house and can make sure that nodes share all of their configuration in the underlying database layer. If the nodes cannot continue in the middle of a conversation to another node, this can cause data inconsistency.
If you are sure your application supports this advanced configuration, simply modify your backend configuration in haproxy.cfg to read as follows:
backend web_servers
balance roundrobin
retry-on all-retryable-errors
server server1 192.168.3.131:80 check
server server2 192.168.3.132:80 check
server server3 192.168.3.133:80 checkThere are also other, safer options for Layer 7 retries that, for example only attempt the Layer 7 retry if the connection to the first node (now offline) was the initial request and was rejected. This can be achieved with
backend web_servers
balance roundrobin
retry-on conn-failure
server server1 192.168.3.131:80 check
server server2 192.168.3.132:80 check
server server3 192.168.3.133:80 checkFinally, depending on application architecture, one might want to allow GET requests to retry with impunity, but for POST requests to be re-tried by the user.
backend web_servers
retry-on all-retryable-errors
http-request disable-l7-retry if METH_POST
server server1 192.168.3.131:80 check
server server2 192.168.3.132:80 check
server server3 192.168.3.133:80 checkThis only scratches the surface of the sorts of things HAProxy is able to do. Whether you’re architecting a highly available application for the very first time, or tired of paying maintenance fees for commercial load balancing hardware and solutions, HAProxy is worthy of consideration.
